3d Scanning and Photogrammetry

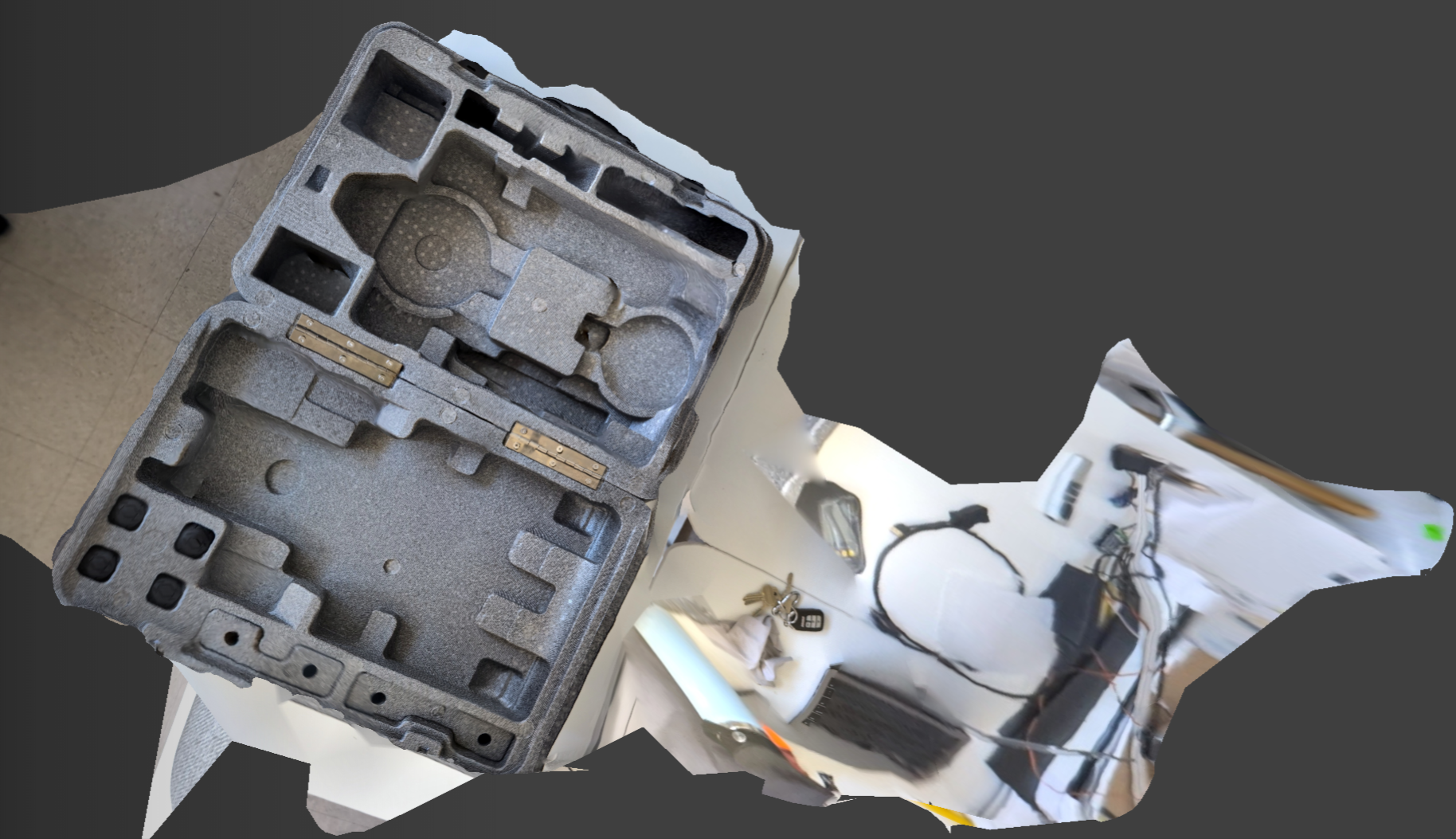

A quick scan of a shipping case for a robot dog.

Two main techniques: photogrammetry and LIDAR
- Photogrammetry
- LIDAR / 3d scanning (with laser)
  - Handheld scanner at Envision
Examples of room scans (Twomey)
Simple solution, phone/tablet apps.
- Kiri, Polycam, Widar, etc. See Other scanning apps in References below.
- Other approaches?
Strengths and limitations of various approaches.

Install Scaniverse https://scaniverse.com/
- ten scanning tips for scaniverse
Take turns with your neighbor scanning portraits.
Use the tools in the app to crop the scan to an appropriate size/shape.
Export to a file format and import into Rhinio.
- Exports to Sketchfab, or to zip file.
- Sketchfab https://sketchfab.com/

Really just working with Meshes. Export from the scanning app as OBJ, PLY, or similar format.

Mesh Repair Follow the detailed Scan, Cleanup, Remodel workflow described in the Rhino Whitepaper below ScanCleanupRemodel.pdf

Rhino Mesh Commands:

MeshRepair contains many mesh repair tools in a single dialog.
FillMeshHole attempts to fill all open holes in the mesh. To make it watertight.

Other Scanning Apps
- Kiri Engine (iOS, Android and Web) three free exports per week
- Polycam https://poly.cam - does both photogrammetry and LIDAR (iOS and Android)
- Widar https://www.widar.io/ (iOS and Android) 5 scans per day
- MagiScan https://magiscan.app/ (iOS and Android)
- Scandy Pro https://www.scandy.co/apps/scandy-pro - can use the front facing LIDAR
- Objy.app https://www.objy.app/ can use LIDAR (iOS only)
Rhino Whitepaper on Scan, Cleanup, Remodel: ScanCleanupRemodel.pdf
- ScanCleanupRemodel.zip
Mesh Lab research grade mesh software. Implements many state of the art softwares.

Paul McCarthy
